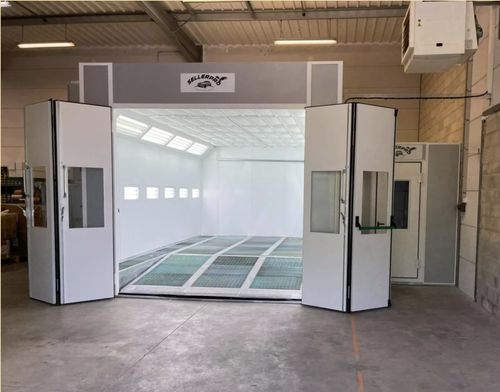

Open paint booth NS series
for vehiclesfor steel constructionfilter

open paint booth
open paint booth
open paint booth
open paint booth
open paint booth
Add to favorites
Compare this product


Characteristics

Structure
open
Applications
for vehicles, for steel construction
Filter type
filter
Other characteristics
with drying

Description

CABIN FOR AUTOMOTIVE PAINTING A paint and drying booth is where the vehicle is painted via a spray gun with an air channel operating under low pressure and followed by drying. Air coming from outside the installation via the ceiling filter system. Paint particles retained by paint stop filters and broken down from the air. The spray booth is equipped with a diesel or oil burner and fan-motor units. In front of the entrance to the structure an entrance ramp, a metal basement or excavation work, a channel connection to the air circulation units is executed and installed at the top of the installation. In addition to this, you will need to know more about it. The side walls are made of 1 mm galvanized sheet metal, with 40 mm glass wool insulation. In order to provide an ergonomic view and longer service life, the outer surface of the panels is painted with imported static powder paint. Our products feature the lighting system that has been designed to optimize color control during the painting phase. In the paint booth, there is a suspension system with rails hanging from the ceiling, which allows parts to be painted next to the automobile. The ceiling is the section that ensures the homogeneous flow of air from the heat exchanger, through the plenum and filters. The ceiling consists of sheet metal panels with a special insulating support and, in order to clean the air supplied to the cabin, a filter element made of non-flammable material, special high performance, long life is placed under the ceiling. There are 3 doors at the front and rear of the cabin, and 1 door system for staff entry and exit. Door items have viewing windows made up of safety glasses.
