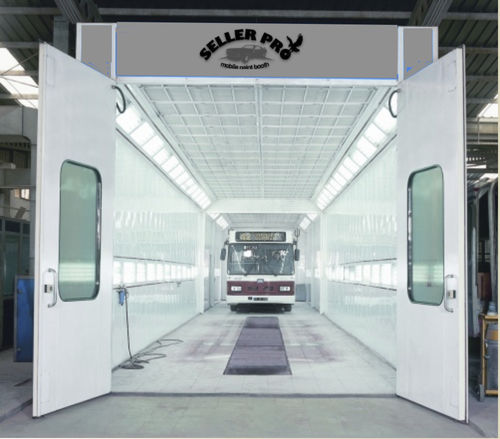

Open paint booth NS15000

for heavy trucksfor steel constructionfilter

A paint and drying booth is where the vehicle is painted via a spray gun with an air channel operating under low pressure and followed by drying. Air coming from outside the installation via the ceiling filter system. Paint particles retained by paint stop filters and broken down from the air. The spray booth is equipped with a diesel or oil burner and fan-motor units. In front of the entrance to the structure an entrance ramp, a metal basement or excavation work, a channel connection to the air circulation units is executed and installed at the top of the installation. The side walls are made of 1 mm galvanized sheet metal, with 60 mm glass wool insulation. In order to provide an ergonomic view and a longer service life, the outer surface of the panels is painted with imported static powder paint. Our products have the lighting system that has been designed to optimize color control during the painting phase. In the paint booth, there is a suspension system with rails hanging from the ceiling, which makes it possible to paint parts next to the automobile. The ceiling is the section that ensures the homogeneous flow of air coming from the heat exchanger, through the plenum and the filters. The ceiling consists of sheet metal panels with a special insulating backing, and in order to clean the air supplied to the cabin, a filter element made of non-flammable, special high-performance, long-life material is placed under the ceiling. There is a 4-leaf door at the front, and 1 entry and exit door system for operators. Door items have viewing windows made of safety glasses. The thickness of the doors is 55 mm and insulated with 55 mm glass wool. All windows include glasses.
