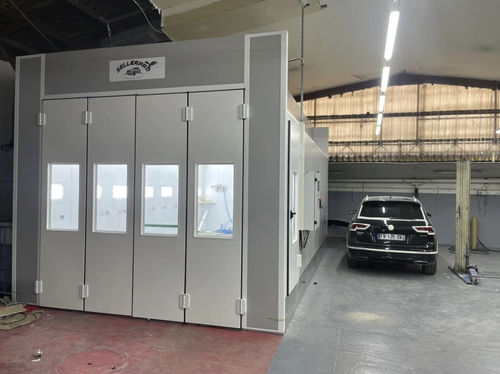

Enclosed paint booth NS4000

for vehiclesfor steel constructionfilter

automotive paint booth without civil engineering on metal basement with ramp. Length : interior 4000mm outside 4200mm Lenght : interior 3000mm outside 3100mm Height : interior 2500mm exterior 2930mm + 400mm basement = 3300mm Lighting: 18*40 watts Air flow: 18,000 m3/Hour Heating unit motor: 7.5 HP (5.5kw) Burner heating unit: 200,000 Kcal/H Max/heating temperature 60/80°C * 1 RIELLO burner connection * 2 Exhaust (suction) NICOTRA *3 Ramp?/SELLERPRO * 4 Motor?/ GAMAK OR ABANA * 5 Heat exchanger?/ SELLERPRO * 6 Air shock absorber (Pneumatic)?/ SELLER PRO * 7 Pneumatic cylinder?/ WINMANN * 8 Engine blower fan?/ NICOTRA * 9 Motor?/ GAMAK OR ABANA * 10 Prefilter?/ VOLTZ EU4 * 11 Floor Filter?/ VOLTZ EU32 * 12 Volet expression?/ SELLERPRO *13 Side panel?/SELLERPRO * 14 Wall (Panel) Insulation (50mm)?/ URSA * 15 Grid?/ MEISER * 16 Ground filters?/ VOLTZ * 17 Service door?/ SELLERPRO * 18 Door insulation (60mm)?/ URSA * 19 Emergency exit handle?/ SAVIO * 20 Lighting?/ PHILLIPS * 21 Extraction box?/ SELLERPRO * 22 Reinforcement of the extraction box?/SELLER PRO *23 Air Shock Absorber (Manual)?SELLERPRO * 24 Vehicle entry door?/ SELLER PRO * 25 Tableau Digital?/ DELTA PLC MOELLER * 26 Ceiling panel?/ SELLERPRO * 27 Ceiling insulation?/ URSA * 28 Hot air box?/ SELLERPRO * 29 Ceiling Filter?/ VOLTZ - Access by facade composed of 3-leaf door - 4-leaf door with neoprene gaskets for excellent resistance to solvents. -High resistance to temperature and solvent vapors. - Large glazed area for the inside view of the cabin. - Closure made of steel hardware
