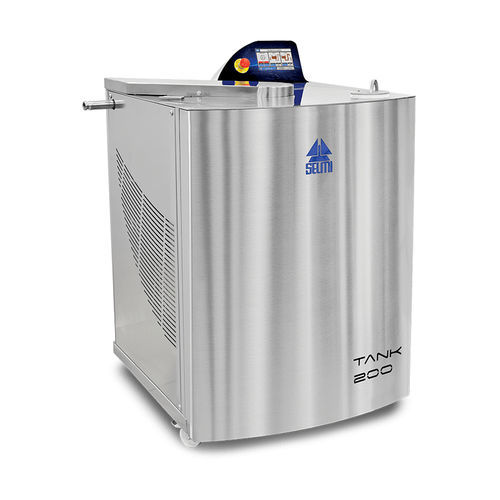

Chocolate mixer Tank 200

dynamicbatchcontinuous

New model! Renewed design, with large top opening that makes the tank completely accessible and sanitizable. It is possible to order the machine with the chocolate dispensing spout on the right or left side. Dry tank heating. Only requires power supply connection. The chocolate mixing and melter Tank 200 is entirely built in stainless steel AISI 304. The mixer can be operated in a continuous or intermittent mode with programmable temperatures and timed mixing. The heating of the tank and of the exit conduit are separately thermoregulated. Integrated pump for feeding chocolate to tempering machines. Electrical specification: 400 V three phase - 50 Hz Option to modify to: 220 V three phase – 50/60 Hz Power required: 4 Kw - 16 A - 5 poles Tank capacity: 200 kg Dimensions: h. 1370 mm (1815 mm with the lid open), w. 950 mm (1080 mm with the lid open and dispensing spout on the right side), d. 960 mm Equipped with a pedal or button controlled screw pump for the extraction of chocolate. The pump reverses its direction of rotation at the end of each working cycle to clean the tubing. This machine can be ordered with the pump emission point on the right or on the left side.
