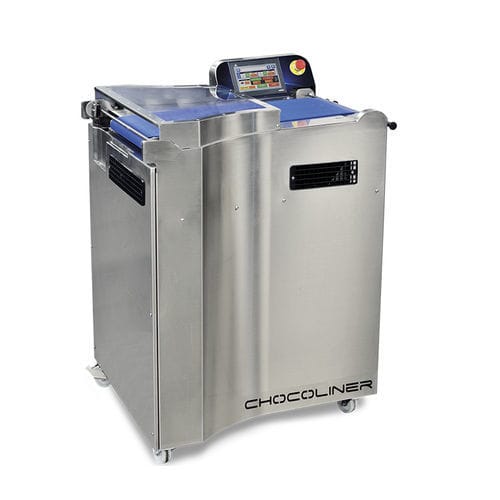

Alignment system for the food industry Chocoliner

Chocoliner, consisting of four aligners, is located between the extruder and the coating belt and optimizes the productive capacity of the line. By making use of an oscillatory motion with adjustable steps the product is sorted into lines, transported towards the enrobing zone and subsequent cooling in the tunnel. It should be noted that the entire process is automated and does not require the manual input of the operator, hence avoiding damage to the previously extruded product. Electrical specification: 220 V single phase - 50/60 Hz Power required: 0.4 Kw - 16 A - 3 poles Hourly production (estimated): 40-50 kg (it supports Chocoform's hourly production) Dimensions: h. 1230 mm, w. 860 mm, d. 760 mm
