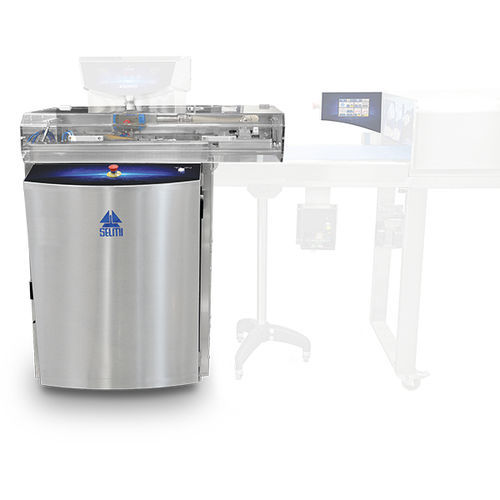

Automated filling machine

for small chocolate productsfor the food industrypneumatic

Drops System is a filling machine, accessory to the cooling and coating tunnel, suitable for making chocolate drops in different sizes and weights with a minimum of 2 g per drop. Can be connected to a TOP EX tempering machine for feeding chocolate. The injection takes place directly on the tunnel belt 300mm or 400mm and is equipped with a threeway valve for precise and continuous dispensing of the chocolate. It interfaces with the touch screen display of the tunnel to input the injection and the resistances settings. Electrical specification: 220 V single phase - 50/60 Hz Power required: 1.4 Kw - 16 A - 3 poles Needs to be connected to a compressed air source: 80 lt/min - 6 bars minimum - filtered, dried, de-oiled Machine for chocolate drops production Commands are on the cooling tunnel touch screen Works on 300 or 400 mm tunnel belt Resistances with electrical control Equipped with pneumatic three-way valve for precise and adjustable casting Automated injection plate extraction
