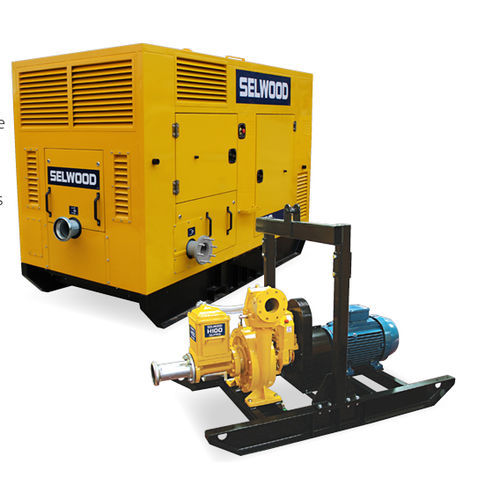

Wastewater pump H100 series
with combustion engineself-primingcentrifugal

wastewater pump
wastewater pump
wastewater pump
wastewater pump
Add to favorites
Compare this product


Characteristics

Fluid
for wastewater
Operation
with combustion engine
Priming
self-priming
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
discharge, dewatering
Fluid specification
for abrasive fluids
Other characteristics
high-efficiency, high-performance, automatic, dry
Flow

211 m³/h, 225 m³/h
(7,451.39468 ft³/h, 7,945.80001 ft³/h)

Head

30 m, 120 m
(98'05" , 393'08" )

Power

82 kW, 86 kW
(111.49 hp, 116.93 hp)

Input diameter

368 mm
(14.488 in)

Length

210 cm, 275 cm
(83 in, 108 in)

Width

105 cm, 155 cm
(41.34 in, 61.02 in)

Height

149 cm, 210 cm
(5.87 in, 82.68 in)

Weight

1,600 kg, 2,785 kg, 2,967 kg
(3,527.4 lb, 6,139.87 lb, 6,541.12 lb)

Description

Our ‘H Pumps’ offer maximum performance and efficiency for high head, high pressure dewatering. These efficient models offer total heads up to 120m, mechanical shaft sealing, Selprime® automatic self-priming and emission compliant engines. Ideal for high head and high pressure applications, they’re simple to operate and maintain. Our H Pumps are perfect for  High head dewatering  Pipeline testing & cleaning  Water boosting Reducing environmental impact We are committed to reducing our environmental impact by producing the most efficient equipment we can. All Selwood Eco4 pumps can run on hydrotreated vegetable oil (HVO) fuel as an alternative to diesel Super Silent units include:  Quietest pumps on the market – EU directive 2000/14/EC  Improved canopy design  Auto stop/start control  Oil drain kit  Bulk fuel kit  Remote pump monitoring

VIDEO

Catalogs

No catalogs are available for this product.

See all of Selwood‘s catalogs
