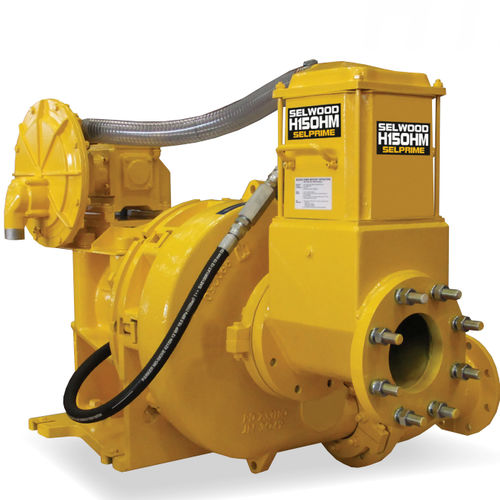

Diaphragm pump H150HMwastewaterdiesel engineself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- wastewater
- Operation
- diesel engine
- Priming
- self-priming
- Mobility
- stationary
- Domain
- mining and quarrying
- Other characteristics
- high-efficiency, high-performance, automatic, dry, with closed impeller
- Flow
450 m³/h
(15,891.60002 ft³/h)- Head
95 m
(311'08" )- Power
130 kW
(176.75 hp)- Input diameter
400 mm
(15.748 in)- Length
134 cm
(53 in)- Width
108 cm
(42.52 in)- Height
86 mm
(3.39 in)- Weight
710 kg
(1,565.28 lb)
Description
The unique original Selwood self priming system utilising a water tolerant diaphragm air pump. An environmentally friendly design that has none of the problems of oil vapour emissions and oil emulsification associated with other priming systems.
VIDEO
Catalogs
Product Range Brochure EN
12 Pages
Selwood Pumps brochure EN
12 Pages
