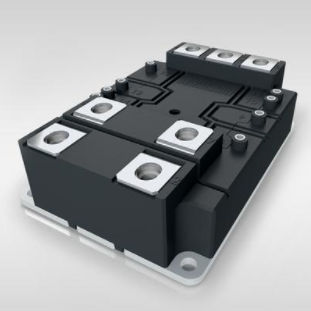

Power module SEMITRANS® 20

High Power Standard – No Compromises SEMITRANS® 20 – The next generation standard power module As the new high power standard in Traction, Renewables and Drives, the SEMITRANS 20 represents the next generation power module for high power applications. The SEMITRANS 20 product family features two different versions: SEMITRANS 20 Traction: rolling stock reliability, and SEMITRANS 20 Industrial: optimized for wind, solar and drive applications. The SEMITRANS 20 is ideal for paralleling, allowing for scalable high power inverter platforms and reducing the total cost of ownership. The SEMITRANS 20 product family increases product lifetimeand power output. Multiple chip sources provide the highest supply chain safety. SEMITRANS 20 modules deliver significant advantages on the high power inverter market: A simplified inverter design leads to reduced costs for mounting materials as well as in the inverter assembly process More space for driver boards and less magnetic field disturbance from high current bus bars to the driver Three AC terminal connectors for low operating temperatures even at high loads Less derating at parallel operation thanks to the low-inductance bus bar layout and the extremely low module inductance Ideal for cost-effective inverter design and scaling On top of this, the SEMITRANS 20 TRACTION module provides SEMIKRON innovative technologies such as sintered chips, AlCu wire bonds, Si3N4 ceramics and AlSiC baseplate. This takes reliability and power density to new levels, resulting in: Superior product lifetime Lower cost per kW Smaller volume per kW
