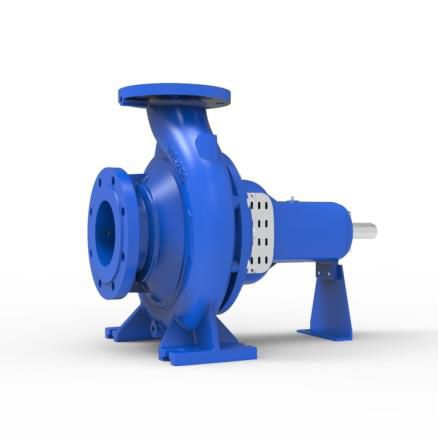

Centrifugal with volute pump TKF series

waterfor chemicalsoil

Design Features • TKF series pumps has designed for pumping non-abrasive and small particulars liquids. • TKF series pump has just one impeller,pump and motor is connecting by coupling.It gives yours avantages for easy disassembling. • Pump Dimensions are acceptable TS EN 733 standard. • Input and Output Flange Diamesions are acceptable ISO 1092-2/PN 16. • TKF series is off the wheel and wheel balancing holes in the wings to minimize ta axial loads, dynamic loads are balanced within. • Sealing is provided by gland packing.Sealing is provided by also mechanical seal as customer request. • Easy dissasamble to pump and change impeller,bearings and seals. • All impellers are balanced statically and dynamically according to ISO 1940 class 6.3. • Direction of rotation is clockwise viewed from driver end. Technicial Specifications Minimum Efficiency IndexMEI ≥ 0.4 ve MEI ≥ 0.7 (EU 547/2012) FlowUp to 1750 m³/h Discharge HeadUp to 105 m RevolutionsUp to 3600 rpm Operating temperature-20 ⁰C to + 140 ⁰C * Body Pressure10 - 16 bar
