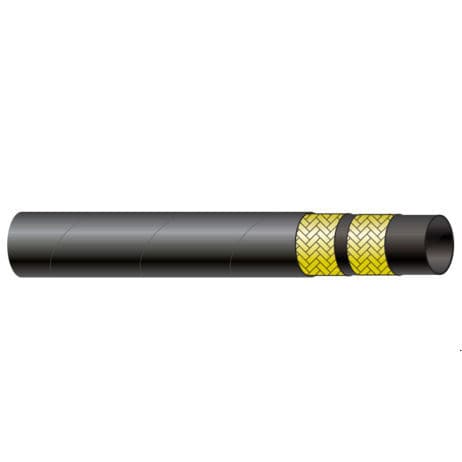

Hydraulic hose DIN EN 853 2 SN SAE 100 R 2 Ssteelsyntheticsynthetic rubber
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic rubber, steel, synthetic
- Other characteristics
- standard
- Inner diameter
Max.: 51.1 mm
(2.012 in)Min.: 6.6 mm
(0.26 in)- Outer diameter
Max.: 66.3 mm
(2.61 in)Min.: 14.3 mm
(0.563 in)- Pressure
Max.: 400 bar
(5,801.51 psi)Min.: 80 bar
(1,160.302 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Wire braid hydraulic hose meets EN 853 2SN, SAE 100R2 and ISO 1436 2SN
GENERAL
TUBE
Synthetic rubber, resistant against hydraulic fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
REINFORCEMENT
Two braids of high tensile steel wire
COVER
Abrasion and ozone resistant synthetic rubber
Note: various covers available
TEMPERATURE RANGE
-40°C to 100°C / -40°F to +212°F (max 120°C / 248°F intermittent)
STANDARD BRANDING
Embossed tape
