Hydraulic hose SAE 100 R 17steelsyntheticsynthetic rubber
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic rubber, steel, synthetic
- Applications
- construction
- Other characteristics
- standard
- Inner diameter
Max.: 26 mm
(1.024 in)Min.: 6.6 mm
(0.26 in)- Outer diameter
Max.: 36.2 mm
(1.425 in)Min.: 12.4 mm
(0.488 in)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description

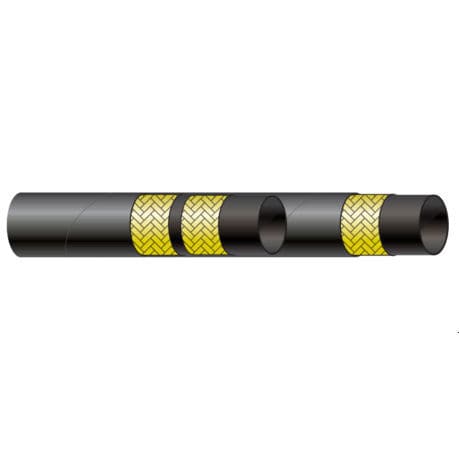

Compact hydraulic hose isobaric construction acc. to SAE 100 R17, exceeds ISO 18752 AC
GENERAL
TUBE
Synthetic rubber, resistant against hydraulic fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
REINFORCEMENT
One braid DN6 – DN12 and two braids DN16 – DN25 of high tensile steel wire
COVER
Abrasion and ozone resistant synthetic rubber
Note: various covers available
TEMPERATURE RANGE
STANDARD BRANDING
Embossed tape
