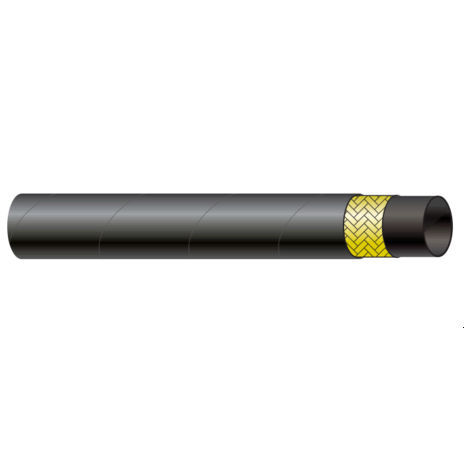

Hydraulic hose SEMPERPAC 1SNKsteelsyntheticsynthetic rubber
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic rubber, steel, synthetic
- Applications
- construction
- Other characteristics
- standard
- Inner diameter
Max.: 32.5 mm
(1.28 in)Min.: 6.6 mm
(0.26 in)- Outer diameter
Max.: 43.7 mm
(1.72 in)Min.: 12.1 mm
(0.476 in)- Pressure
Max.: 290 bar
(4,206.094 psi)Min.: 100 bar
(1,450.377 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Compact hydraulic hose construction, higher pressure at reduced bend radii
GENERAL
TUBE
Synthetic rubber, resistant against hydraulic fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
REINFORCEMENT
One braid of high tensile steel wire
COVER
Abrasion and ozone resistant synthetic rubber
Note: various covers available
STANDARD BRANDING
Embossed tape
NOTE
Impulse tested up to 700.000 cycles (tested acc. to ISO6803:2017)
