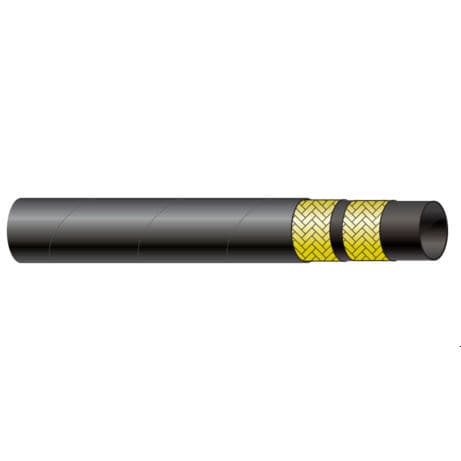

Hydraulic hose SAE 100 R19steelsyntheticsynthetic rubber
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic rubber, steel, synthetic
- Applications
- construction
- Other characteristics
- standard
- Inner diameter
Min.: 6.6 mm
(0.26 in)Max.: 19.5 mm
(0.768 in)- Outer diameter
Min.: 13.9 mm
(0.547 in)Max.: 27.6 mm
(1.087 in)- Pressure
280 bar
(4,061.057 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
Compact hydraulic hose construction
GENERAL
TUBE
Synthetic rubber, resistant against hydraulic fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
REINFORCEMENT
Two braids of high tensile steel wire
COVER
Abrasion and ozone resistant synthetic rubber
Note: various covers available
STANDARD BRANDING
Embossed tape
