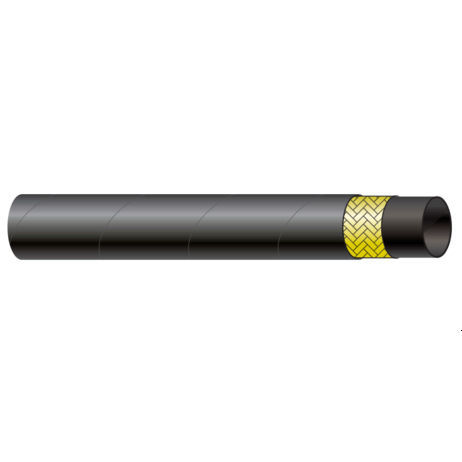

Hydraulic hose DIN EN 853 1 SN SAE 100 R 1 S synthetic rubberhigh-pressurefor cleaners
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic rubber
- Applications
- high-pressure, for cleaners
- Other characteristics
- abrasion-resistant, wire-braided
- Inner diameter
Min.: 6.6 mm
(0.26 in)Max.: 51.1 mm
(2.012 in)- Outer diameter
Min.: 13 mm
(0.512 in)Max.: 64.1 mm
(2.524 in)- Pressure
Min.: 40 bar
(580.151 psi)Max.: 225 bar
(3,263.349 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
Wire Braid Hydraulic Hose meets EN 853 1 SN, SAE 100R1 and ISO 1436 1SNR1
TubeSynthetic rubber, résistant against hydraulic fiuids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
ReinforcementOne braid of high tensile Steel wire
CoverAbrasion and ozone résistant synthetic rubber Note: various covers available
Température range-40° Cto 100° C / -40° F to +212° F(max120° C/248° F intermittent)
Standard branding embossed
