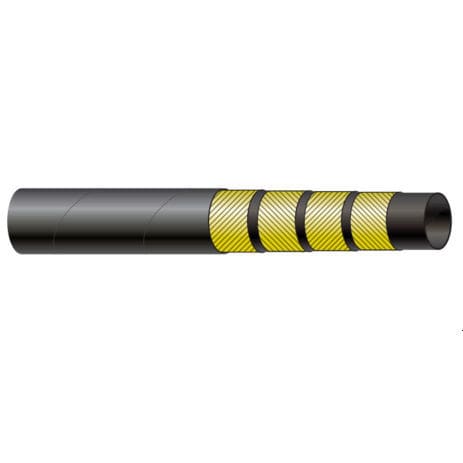

Hydraulic hose DIN EN 856 4 SP synthetic rubberabrasion-resistantspiral wire
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic rubber
- Other characteristics
- abrasion-resistant, spiral wire
- Inner diameter
Min.: 9.9 mm
(0.39 in)Max.: 51.1 mm
(2.012 in)- Outer diameter
Min.: 21.1 mm
(0.831 in)Max.: 70.2 mm
(2.764 in)- Pressure
Min.: 165 bar
(2,393.123 psi)Max.: 445 bar
(6,454.179 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
Multispiral Hydraulic Hose acc. to EN 856 4 SP / SAE 100 R9R
TubeSynthetic rubber, résistant against hydraulic fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
ReinforcementFour spiral layers of high tensile Steel wire
CoverAbrasion and ozone résistant synthetic rubber - MSHA approved Note: various covers available
Température range-40° Cto 100° C/-40° Fto+212° F(max120° C/248° F intermittent)
Standard Branding Mylar Tape
