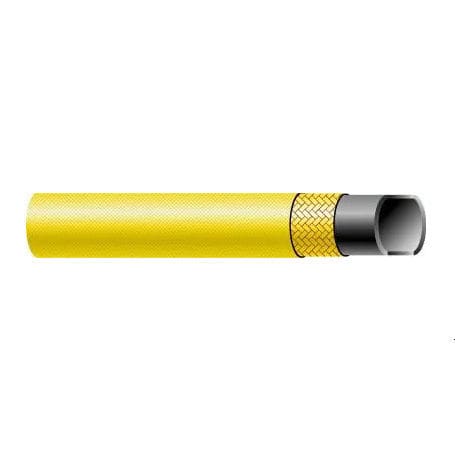

Water hose PLDfor compressed airEPDMSBR
Add to favorites
Compare this product
Characteristics
- Use
- for water, for compressed air
- Material
- EPDM, SBR
- Applications
- high-pressure, construction, heavy-duty, mining and quarrying
- Other characteristics
- abrasion-resistant, smooth, weather-resistant, rugged, steel-braided
- Inner diameter
25.4 mm, 38 mm, 50.8 mm, 76.2 mm
(1 in, 1.496 in, 2 in, 3 in)- Outer diameter
38.2 mm, 53 mm, 66.8 mm, 94.2 mm
(1.504 in, 2.087 in, 2.63 in, 3.709 in)- Pressure
Max.: 40 bar
(580.151 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -35 °C
(-31 °F)
Description
Application:
A robust compressée! air hose for oil-laden compressée! air. Suitable for use in quarries, surface mining and road construction. Feature:
The Steel wire reinforcement makes the hose suitable for high pressure and heavy duty applications.
Easily identified due to distinctive colour.
Notice:
Black cover available on request.
Température range:
-35°C/+80°C.
Safety factor:
3,15 : 1
Tube:
SBR, black, suitable for oil-laden air, smooth.
Reinforcement:
Steel braided.
Cover:
SBR/EPDM, yellow, résistant to ozone and weather, abrasion résistant, cloth impression.
Marking:
continuous embossed tape:
"SEMPERIT (S) Druckluft Air Wire braid Luna PN 40bar\
Catalogs
No catalogs are available for this product.
See all of Semperflex‘s catalogs
