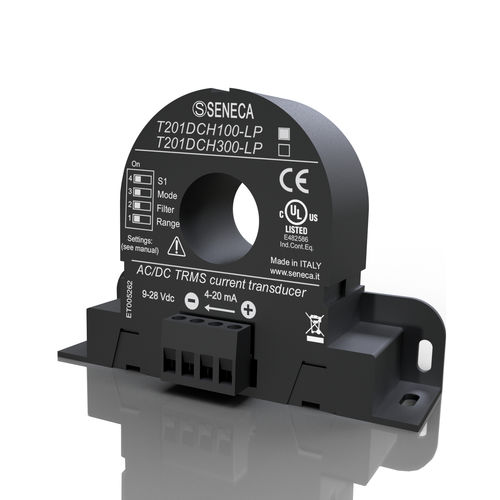

Hall effect current transducer T201DCH100-LP

DIN railACDC

T201DCH100-LP is an isolated, contact-less loop-powered AC/DC current transducer with a very compact size (overall dimensions less than 96,5 x 68 x 26 mm). The device function and look are very similar to those of an active standard CT, but with the remarkable feature of measuring the TRMS DC and AC component of the current. For its electrical endurance, ease of use, and compact dimensions, the T201DCH100-LP transducer fits every kind of current measurement up to 100 Adc/Aac and several applications (batteries, battery chargers, solar panels, power units, dc and ac loads, etc.). Description: - AC/DC contactless TRMS direct and alternate current (± 100 A) transducer, Hall Effect with 4..20 mA AO Power Supply: - loop powered Accuracy Class: - 0,5 Input Range: - -100..+100 A ac/dc Measurement Type: - TRMS Output Range: - 4..20 mA Settings: - Via DIP switches Dimension: - 68 x 95 x 25 mm (Ø 20,8 mm)
