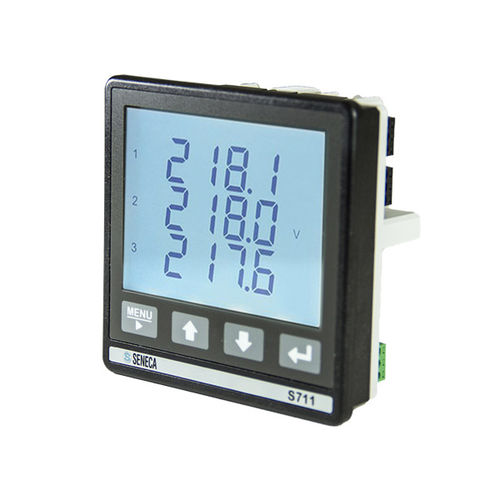

Panel-mount power meter S711B

three-phase

S711B is a front panel innovative instrument for measurement and recordings of the electrical parameters. It is particularly suitable for consumption analysis and control, with an excellent quality/price ratio. The wide display gives the user easy access to all informations. Unlike the Energy Plus versions, S711B has 1 MB data memory for recordings where it can record only the average values for active & reactive powers. S711B has no harmonics calculations. The instrument can communicate through the RS485 serial port by ModBUS RTU/ASCII protocol. Display - Backlighted LCD 76x61 mm Harmonics - No Recordings - Average values for active & reactive powers Memory for data logs - 1 MB Accuracy - 0,2% (voltage), 0,4% (current), 0,5% (power) Connections - 1 / 5 A (external CTs) Interfaces - RS485, LAN Certifications - CE Dimension - 96x96x39 mm Front panel hole dimension - 91x91 mm (±0,8 mm)
