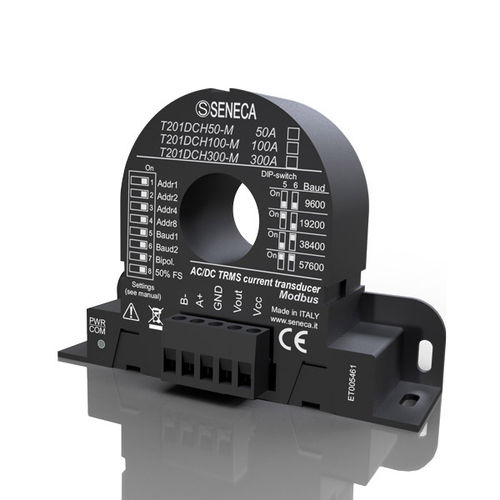

Hall effect current transducer T201DCH300-M

DIN railACDC

T201DCH300-M is an isolated, contact-less loop-powered AC/DC current transducer with ModBUS interface and very compact size (overall dimensions less than 96,5 x 68 x 26 mm). The device function and look are very similar to those of an active standard CT, but with the remarkable feature of measuring the TRMS DC and AC component of the current. For its electrical endurance, ease of use, and compact dimensions, the T201DCH300-M transducer fits every kind of current measurement up to 300 Adc/Aac and several applications (batteries, battery chargers, solar panels, power units, dc and ac loads, etc.). Description: - AC/DC contactless TRMS direct and alternate current (± 300 A) transducer, Hall Effect with ModBUS interface Power Supply: - 12..28 Vdc Accuracy Class: - 0,5 Input Range: - -300..+300 A ac/dc Measurment Type: - AC/DC TRMS or DC Bipolar Output Range: - 0..10 V Settings: - Via DIP switches or software EASY Setup Dimension: - 68 x 95 x 25 mm (Ø 20,8 mm)
