Analog input module Z-8TC-SI

Modbus RTURS4858 inputs

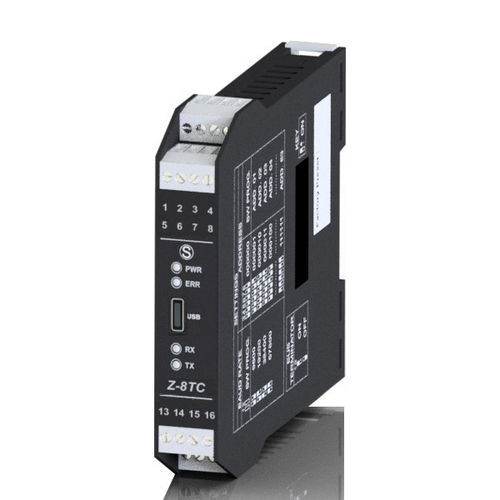

The Z-8TC-SI is a digital converter for thermocouple types J, K, E, N, S, R, B, and T, with eight measurement channels. The module features RS485 Modbus RTU communication, cold junction compensation, high accuracy, overall isolation up to 1.5 kVac, and up to 24-bit resolution. TECHNICAL DATA Power supply - 10..40 Vdc; 19..28 Vac (50-60 Hz) Power consumption - Max 0,6 W Isolation - 1.500 Vac ESD protection - 4 kV Status indicators - Power supply Error Tx data Rx data Connections - Removable 4-way terminal block, pitch 3.5mm, max. cable cross-section 1.5mm2 Front micro USB 2.0 for configuration and Modbus RTU communication data storage - EEPROM for configuration parameters, retention time 10 years Baud rate - Up to 115 kbps Protocol - Modbus RTU Time response - <10 ms Channel speed - 25..400 ms Distance - Up to 1.200 m Connectivity - 32 nodes max EASY SETUP Z-NET4 Input channels - 8 inputs that can be activated and configured individually Type of input channels - Thermocouple J, K, R, S, T. B, E, N, L (EN 60584-1, GOST 8.585) Temperature range -210..1820 °C Span: -±150mV Shunt up to 70 mV Measurements format - Voltage (μV), temperature (°C) on 16-bit Int and 32-bit on floating point, direct o swapped Operating temperature - -25..+70 °C Dimension - 17.5 x 100 x 112 mm Weight - 140 g Housing - PA6, black color Certifications - CE, UKCA
