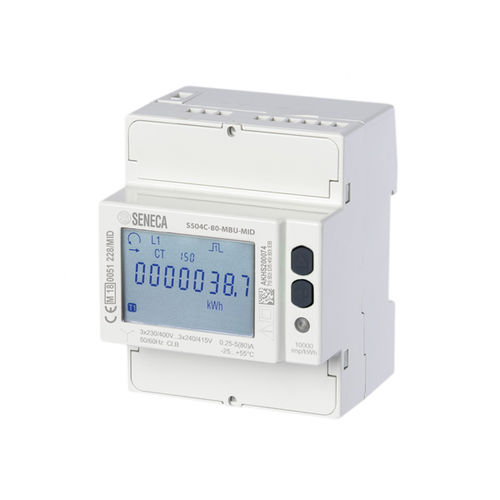

Three-phase electric energy meter S504C-80 series

DIN railRS-485with built-in communication

With direct connection up to 80A, S504C-80 is a 4 DIN energy counter module (also with MID certification available) for the energy measurement in industrial and civilian application, with built-in communication (RS485 Modbus, M-Bus or Ethernet). Besides the energy, the counter can measure the main electrical parameters and makes them available on the builtin COM port. The LCD display shows the energies and the instantaneous powers. The COM port allows to manage the connected meter by a remote station. Data is transmitted on a RS485, M-Bus or Ethernet line according to the instrument model. TECHNICAL DATA Power Supply - From the voltage lines Voltage - 3x230/400V ... 3x240/415V 50/60Hz 4 wires Communication Interfaces - RS485 Modbus, M-Bus, Ethernet Accuracy class - Class 1 active energy according to IEC/EN 62053-21 Class B active energy to EN 50470-3 (MID) Class 2 reactive energy to IEC/EN 62053-23 S0 output - Passive optoisolated, pulse length 50 ±2ms ON time Tariff input - Active optoisolated (not available with Ethernet model) Metrological LED - Meter constant 1000 pulse/kWh Operating temperature - -25°C ... +55°C Certifications - CE, MID
