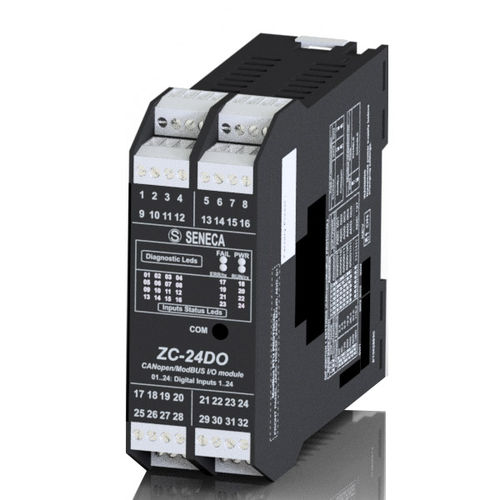

Digital output module ZC-24DOModbus RTURS485CANopen
Add to favorites
Compare this product
Characteristics
- Signal type
- digital
- Bus
- Modbus RTU, RS485, CANopen
- Mounting
- DIN rail
Description
ZC-24DO is used to drive N.24 MOSFETS from all of the control systems which are able to communicate by the protocols CANopen or ModBUS RTU (protocol selectable through dip-switch). The digital output max load is 0,5 Awith ON/OFF delay of 1ms. A 3-way galvanic isolation among Power supply // output // RS485 circuits assures the integrity of your datas.
Power Supply: - 10..40 Vdc, 19..28 Vac
Max power consumption: - 2,5 W
Insulation: - 1,5 kVac (3 way)
Response time: - 1,2 ms
Operating temperature: - -20..+65°C
Dimension: - 35 x 100 x 112 mm
Channels: - 24
Output type: - Mosfet, max 500 mA per channel
RPDO: - < 1,25 ms
