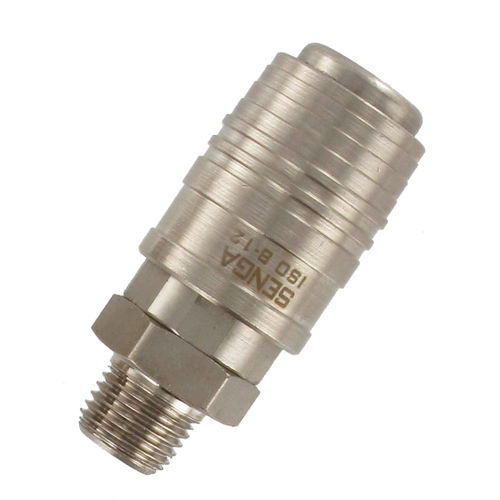

Compressed air fitting 120 NW seriesthreadedringquick
Add to favorites
Compare this product
Characteristics
- Applications
- for compressed air
- Attachment
- threaded, ring, quick, barbed
- Configuration
- Y
- Norms
- BSP
- Material
- nickel-plated brass, nickel steel
- Gender
- male, female
- Other characteristics
- quick-disconnect, rugged, corrosion-proof
- Diameter
5.5 mm
(0.217 in)- Operating pressure
Min.: 0 bar
(0 psi)Max.: 16 bar
(232.06 psi)
Description
Quick connect couplings, US-MIL standard ISO 6150 B12
Technical features
- coupling’s body in nickel plating brass and sleeve in nickel plating steel
- orifice : Ø 5.5 mm
- flow rate (6 bar - ΔP : 1 bar) : 1 100 l/min
- working pressure : 0 ÷ 16 bar
- working temperature -18°C to +80°C
- in compliance with AFNOR E 49 053 et ISO 6150 B-12
- interchangeable with CEJN 310 - Legris 23/24 - Parker PB/PBF - Rectus 23
Catalogs
No catalogs are available for this product.
See all of SENGA‘s catalogs
