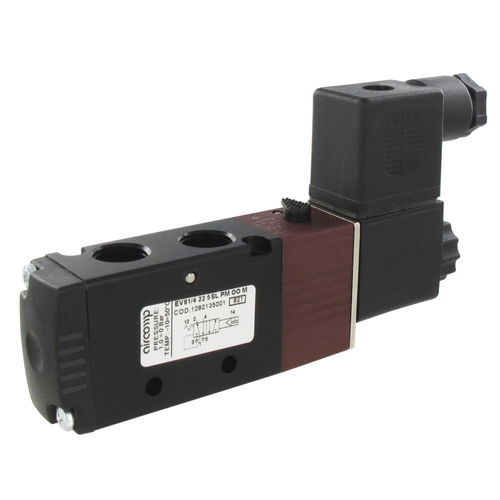

Spool pneumatic directional control valve 128

pneumaticelectrically-operated3/2-way

Valves Line 128 The new Valves Line 128 have been realized for meeting more effectively the demanding requirements of a market, which requests quality at competitive price. The new Valves Line 128 are available with connections 1/4 and metal body 22mm, in solenoid and pneumatic valve version only. Functions: 3/ NC-NO; 5/2 monostable and bistable; 5/3 CC-CA-CP Valves Line 128 are suitable for single use and manifold assembling. General Features Construction: spool type Body size: 22mm Ports: 1/4” Body material: alluminium Single use: Yes Manifold use: Yes Available functions: 32; 5/2; 5/3 Note: connectors and coils are supplied separately CONSTRUCTION - spool valve FLUID - filtered compressed air with or without lubrication INSTALLATION - single use through holes in the valve body - in battery with manifold CONNECTIONS 1/4" TEMPERATURE RANGE -5 / +50°C (23 / 122°F) REFERENCE FLOW RATE P1= 6 bar; Delta P= 1 bar; 3/2= 1.000 lt/min; 5/2= 1.000 lt/min 5/3= 650 lt/min (CC); 550 lt /min (CA); 500 lt/min (CP)
