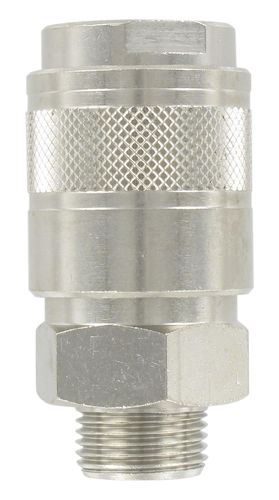

Pneumatic fitting 130 seriesthreadedringquick
Add to favorites
Compare this product
Characteristics
- Applications
- pneumatic
- Attachment
- threaded, ring, quick, barbed
- Norms
- BSP
- Material
- nickel-plated brass, nickel steel
- Gender
- male, female
- Other characteristics
- quick-disconnect, rugged, corrosion-proof
- Diameter
8 mm
(0.315 in)- Operating pressure
Max.: 16 bar
(232.06 psi)Min.: 0 bar
(0 psi)
Description
Quick connect couplings, US-MIL standard ISO 6150 B15
Technical features
- coupling’s body in nickel plating brass and sleeve in nickel plating steel
- orifice : Ø 8 mm
- flow rate (6 bar - ΔP : 1 bar) : 2 500 l/min
- working pressure : 0 ÷ 16 bar
- working temperature -18°C to +80°C
- in compliance with ISO 6150 B-15
- interchangeable with Legris 30
