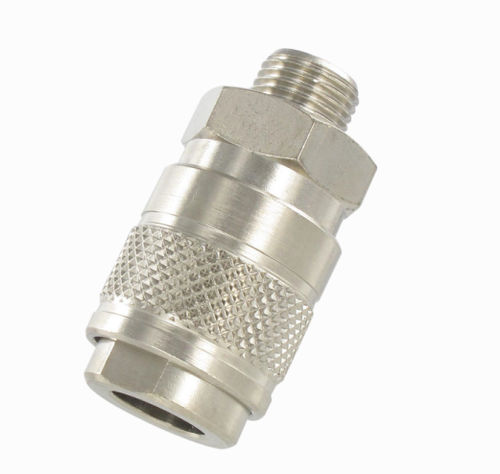

Compressed air fitting 182 seriesthreadedringquick
Add to favorites
Compare this product
Characteristics
- Applications
- for compressed air
- Attachment
- threaded, ring, quick, barbed
- Norms
- BSP
- Material
- nickel-plated brass
- Gender
- male, female
- Other characteristics
- compact, bulkhead, quick-disconnect, rugged, corrosion-proof
- Diameter
5 mm
(0.197 in)- Operating pressure
Max.: 12 bar
(174.05 psi)Min.: 0 bar
(0 psi)
Description
Quick-connect couplings, compact construction
Technical features
- coupling in nickel plating brass
- orifice : Ø 5 mm
- flow rate (6 bar - ΔP : 1 bar) : 650 l/min
- working pressure : 0 ÷ 12 bar
- working temperature -18°C to +80°C
- interchangeable with Camozzi 5050-5150 - Legris 21 - Rectus 21
