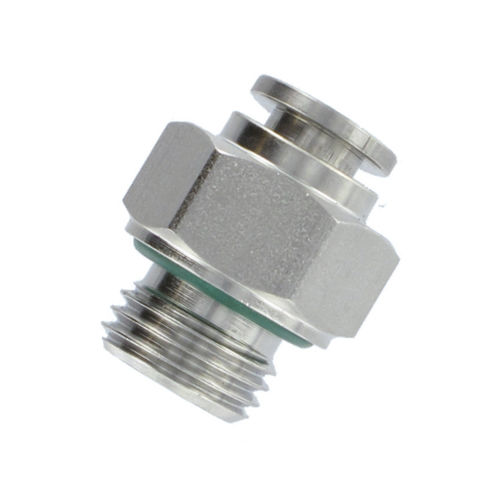

Chemical fitting 5501 for compressed airscrew-inquick
Add to favorites
Compare this product
Characteristics
- Applications
- for chemicals, for compressed air
- Attachment
- screw-in, quick
- Configuration
- 90° angle
- Norms
- BSP, NPT
- Material
- Viton®, stainless steel
- Gender
- male
- Other characteristics
- with O-ring, union, high-pressure, chemical-resistant, for the food industry
- Diameter
Max.: 16 mm
(0.63 in)Min.: 4 mm
(0.157 in)- Operating pressure
Max.: 20 bar
(290.08 psi)Min.: 0 bar
(0 psi)
Description
Stainless steel series push-in fittings - 5500 series
Materials and components :
- AISI 316 stainless steel body
- Viton seals
- each stainless steel component of the fitting is electropolished to obtain a layer of
to obtain a "passive" chromium oxide layer on the surface.
- available for pipes from 4 to 16 mm (recommended tolerance +/- 0,05mm)
Technical characteristics :
Field of application: chemical and food industries
- working pressure: 0 - 20 BAR
- working temperature: -20°C / +150°C
