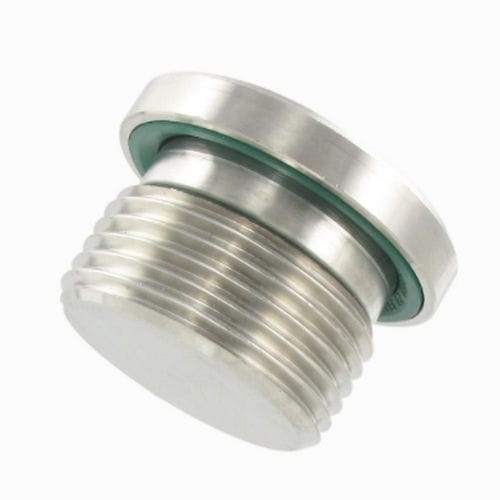

Standard fitting 252 Xfor chemicalsfor compressed airfor gas
Add to favorites
Compare this product
Characteristics
- Applications
- for chemicals, for compressed air, for gas
- Attachment
- threaded, barbed
- Configuration
- 90° angle, T
- Norms
- BSP
- Material
- Viton®, stainless steel
- Gender
- male, female, male-female, female-female, male-male
- Other characteristics
- bulkhead, with O-ring, high-pressure, standard, chemical-resistant, for the food industry, wide temperature range, corrosion-proof, for chemical applications, high-temperature, reduction, low-temperature
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 50 bar
(725.19 psi)
Description
Stainless steel standard fittings series
Material and components:
Standard fittings are in stainless steel AISI 316 Ti (or 316).
All female threads are: - BSPP
Male threads are : - BSPT (ISO 7/1)
- BSPP with Viton seal (ISO 228)
Application: chemical and food industries
maximal working pressure: 50 BAR (ambient temperature)
working temperature : - 20°C / + 200°C (limits of Viton)
