Compressed air filter FM14for industrial applicationsfor air treatment unitsaluminum
Add to favorites
Compare this product
Characteristics
- Designed for
- compressed air
- Applications
- for industrial applications, for air treatment units
- Material
- aluminum, polycarbonate
- Mounting
- threaded
- Other characteristics
- compact, in-line
- Operating pressure
Max.: 12 bar
(174.045 psi)Min.: 0 bar
(0 psi)- Filtration size
10 µm
- Flow
2,100 l/min
(554.761 us gal/min)- Fluid temperature
Max.: 55 °C
(131 °F)Min.: -10 °C
(14 °F)
Description

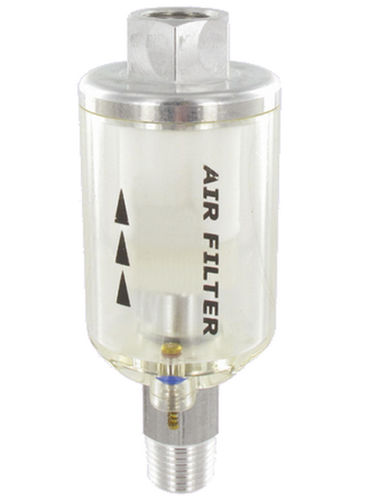

In-line filter for compressed air - FM14 series
Technical data
Materials and components :
-aluminium housing
-polycarbonate bowl
-OR 2112 in NBR
-OR 2037 in NBR
-valve in V3002
Fluid: compressed air
max. inlet pressure (bar) 12
max. working pressure (bar) 12
filtration (ɥm) 10
flow rate (Nl/min) - 6 bar 2100
working temperature (°C) -10°C / +55°C (dry air)
weight (kg) 0,060
