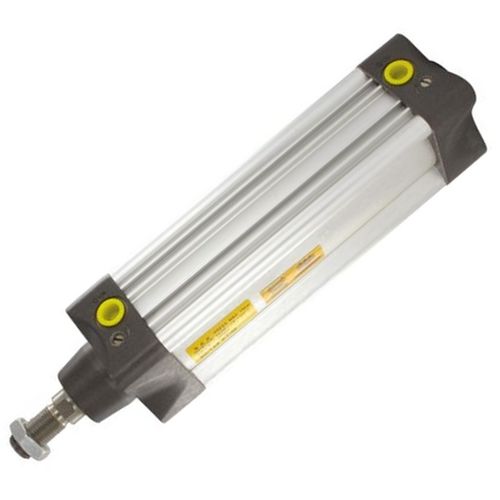

Pneumatic cylinder XT series
magnetic pistonwith piston rodwith threaded rods

pneumatic cylinder
pneumatic cylinder
Add to favorites
Compare this product


Characteristics

Type
pneumatic
Technology
magnetic piston, with piston rod, with threaded rods, tie-rod
Configuration
double-acting, single-acting
Material
anodized aluminum, steel
Norms
ISO 15552, ISO 6431
Applications
industrial
Other characteristics
tie-rod
Stroke

Max.: 3,000 mm
(118.11 in)

Min.: 5 mm
(0.197 in)

Bore

Max.: 320 mm
(12.6 in)

Min.: 32 mm
(1.26 in)

Pressure

Max.: 10 bar
(145 psi)

Min.: 1 bar
(14.5 psi)

Rod diameter

Max.: 63 mm
(2 in)

Min.: 12 mm
(0 in)

Ambient temperature

Max.: 150 °C
(302 °F)

Min.: 0 °C
(32 °F)

Description

With no less than 135 references available in stock at its premises, SENGA markets a very varied range of single and double acting pneumatic cylinders to ISO 15552 (XT) standard, meeting customers' requirements. These cylinders are used in various sectors such as industry, automation, industrial pneumatics, etc. Designed to suit applications requiring compressed air, these magnetic cylinders are available in different diameters from 32 to 320 mm with strokes from 5 mm to 3000 mm.
