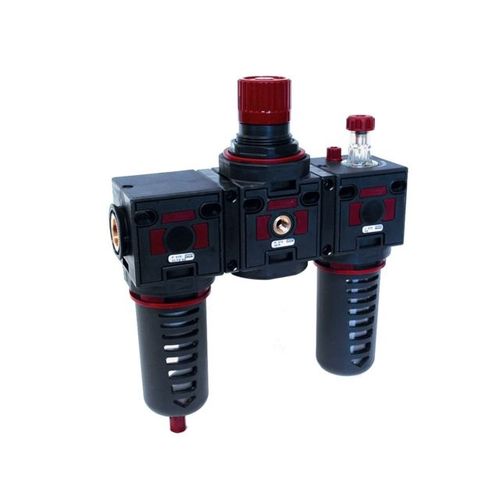

Compressed air filter-regulator-lubricator 042 series
pressurefor industrial applicationspolyamide

compressed air filter-regulator-lubricator
compressed air filter-regulator-lubricator
compressed air filter-regulator-lubricator
compressed air filter-regulator-lubricator
compressed air filter-regulator-lubricator
Add to favorites
Compare this product


Characteristics

Designed for
compressed air
Filtration method
pressure
Applications
for industrial applications
Material
polyamide
Mounting
threaded
Other characteristics
modular, compact, semi-automatic, automatic, anti-corrosion
Operating pressure

Max.: 16 bar
(232.06 psi)

Min.: 0 bar
(0 psi)

Filtration size

Max.: 20 µm

Min.: 5 µm

Flow

Max.: 2,060 l/min
(544.194 us gal/min)

Min.: 1,200 l/min
(317.006 us gal/min)

Fluid temperature

Max.: 50 °C
(122 °F)

Min.: 5 °C
(41 °F)

Description

Filters, regulators, lubricators, air soft starters - 042 Series Recommended for the treatment of compressed air and non-corrosive liquids, the 042 series modular devices are available in different products: 3-way shut-off valve, filter, regulator, filter regulator, solenoid shut-off valve, soft starter, standard lubricator, vacuum filling lubricator... Characterised by a double assembly system, our modular units are practical, functional and have a very small footprint. They can be assembled in standard combination units such as FR+L, V+FR+L, F+R+L, F+L, using standard unit assembly kits. The modular units are made of high quality polymer and have a G1/4" connection. Resistant to solvents and hydrocarbons Use for compressed air and non-corrosive liquids Built-in connection G1/4" connection Materials: High quality polymer Industry Compressed air treatment Industrial automation Industrial pneumatics Compressed air
