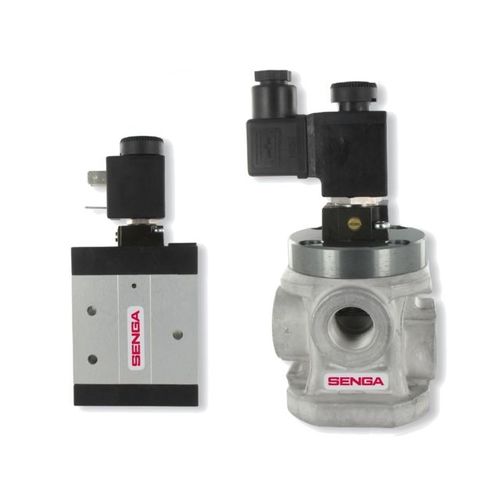

Pilot-operated solenoid valve MF3-wayNCNO
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 3-way
- Function
- NC, NO
- Medium
- air
- Body
- female, rugged, aluminum, anodized aluminum
- Process connection
- G 1 1/2, G 1/2, G 1/4, G 2, G 1, G 3/4, G 1/8
- Other characteristics
- high-flow, plug, membrane
- DN
Max.: 50 mm
(1.969 in)Min.: 5.5 mm
(0.217 in)- Voltage
12 V, 24 V, 110 V, 220 V
- Temperature
Max.: 50 °C
(122 °F)Min.: -20 °C
(-4 °F)- Pressure
Max.: 10 bar
(145 psi)Min.: -1 bar
(-14.5 psi)
Description
Pneumatic 3-way solenoid valves with shutter for air and vacuum
The 3-way solenoid valves with shutter for air and vacuum are marketed by SENGA. They are 3-way valves with a balanced valve system from 1/8" to 2". They have a polyurethane seal for the valve and the control diaphragm, guaranteeing excellent resistance and long life.
Suitably configured, these solenoid valves operate :
With compressed air under servo control of the internal pilot or the external pilot for low pressures
Compressed air servo assisted vacuum, and vacuum servo assisted vacuum
Fluid: Air filtered at 50μ without lubrication.
Dynamic seals: polyurethane
Static seals: NBR
Vacuum capacity: 755 mm Hg
Industry
Industrial pneumatics
Compressed air Vacuum
Industrial automation
