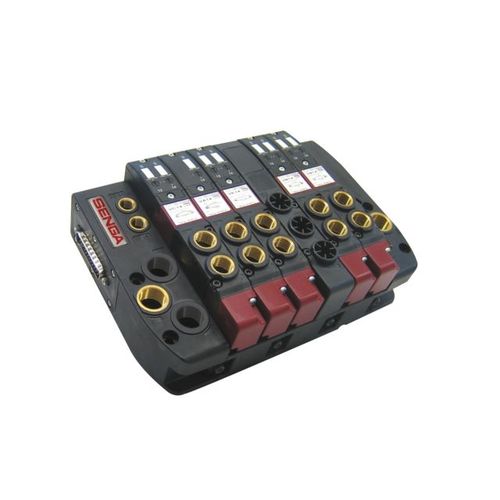

Pneumatic distribution block SIM 150 series

electrically-operatedmodularcompact

Modular multi-pole connection distribution system for compressed air - SIM 150 Series The SIM 150 series is a set of modular multipolar connection distribution systems for compressed air. It combines the flexibility and ease of assembly typical of sub-base valves with the advantages of the most advanced electrical and pneumatic battery wiring system. A special double solenoid valve, located on the same side of the valve, is able to supply bistable models. It ensures that the battery takes up very little space. A simple and intuitive assembly system allows quick assembly of any type of configuration, guaranteeing great versatility of use. The SIM 150 range allows the creation of truly integrated systems of up to 20 bistable electro-pneumatic valves to effectively meet the many different application requirements. Fluid: filtered air with or without lubrication (if lubrication is used, it must be constant) Working temperature: between -5 °C and +50 °C Maximum number of solenoid valves: 20 maximum number of pilots: 40 Voltage: 24 V - DC ±10 Power: 1.3 W Electrical configuration: PNP Electrical connection: 25 pin multipole connector (from 2 to 10 solenoid valve stations) 44 pin multipole connector (from 2 to 20 solenoid valve stations) Degree of protection: IP40: standard 25 pin multipole connection IP65: 25 and 44 pin multipole connections ✔ Advanced electrical and pneumatic battery wiring system ✔ Small footprint ✔ Quick installation
