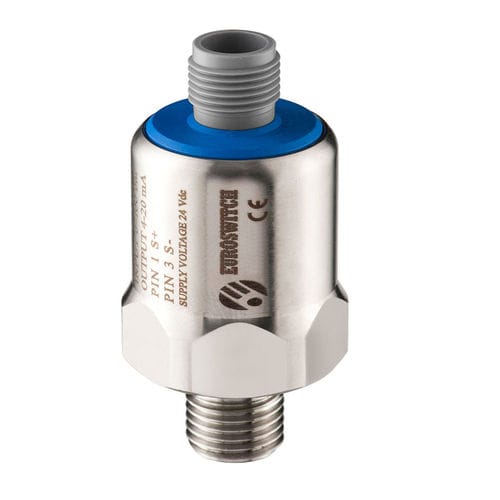

Ceramic pressure transmitter ESP series

4-20 mAM12 connectorthreaded

Pressure transmitters are sensors with additional electronics that compensate for linearity and temperature errors and provide measurement data in the form of standard signals. Made of ceramic, 316 L stainless steel and FPM gasket, our transmitters have an accuracy of < 1% and a response time of 4 ms or less. Their thermal drift is +/-1.5% maximum in the 10-5°C range, and their output signal varies from 4 to 20 mA. They have a lifetime of more than 10 million cycles and a weight of about 80 g.
