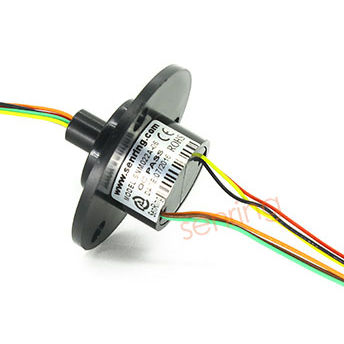

Electric slip ring M220 Seriescapsulefor military applicationssilver
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Construction
- capsule
- Applications
- for military applications
- Material
- silver
- Other characteristics
- compact, standard, low-torque, flange
- Voltage
Min.: 0 V
Max.: 300 V
- Primary current
2 A, 5 A, 10 A, 30 A
- Rotational speed
250 rpm
(1,571 rad.min-1)
Description
Senring SNM022 series medium capsule slip ring,OD 22mm, length from 19mm~57.3mm option,A type flange and without flange optional.SNM022 series capsule slip ring is designed 90° V- groove ensures smooth rotating, low torque, also compact, advanced military
Features
OD 22mm;
Low torque,less than 0.06N.m
2~36 circuits(2A each),6~12circuits(5A each),2~4circuits(10A each),2~3circuits(30A each) optional;
Support transmitting power with signals;
Standard product, stocks available;
Without flange,A type flange option.
