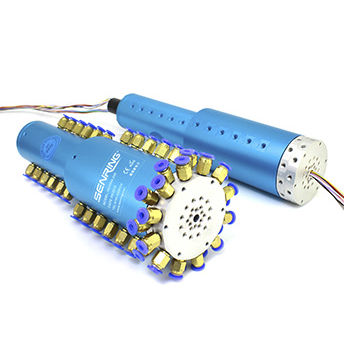

Air rotary union 3024004 Series
for vacuumfor steam24-passage

Add to favorites

Compare this product

Characteristics

Medium: for air, for vacuum, for steam
Number of passages: 24-passage
Applications: pneumatic
Material: aluminum
Rotational speed: 250 rpm, 1,000 rpm
(1,570.8 rad.min-1, 6,283.19 rad.min-1)
Pressure: 1,500,000 Pa, 10,000,000 Pa
(218 psi, 1,450 psi)

Description

24 Passage+6~36 Circuits Electrical,support 24 M5 port for 4mm pipes SENRING 3024004 series 24 passages rotary unions provides a positive seal between stationary piping and a rotating cylinder and is applied to compressed air,steam,vacuum..etc service.Available in 3024004,3024004-06S,3024004-12S,3024004-24S,3024004-36S mod Features Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings,etc.; 360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc. Max. Pressure(s):1Mpa (vacuum: -1.5kPa, higher Pressure can be customized)； Support 24 M5 port for 4mm pipes;
