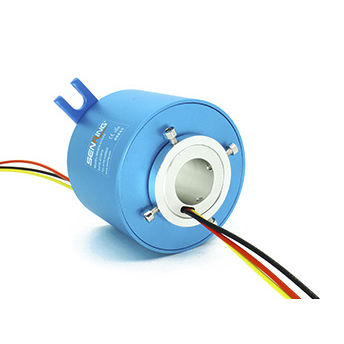

Through-hole slip ring 215804500 Series

standardcustomhigh-current

4 circuits, maximum current 500A per channel; SENRING 215804500 series 360° rotation Through Hole High Current slip ring,hole size 25.4mm,OD 158mm,support 4 circuits (500A each)high current transmission.If you need to combine other circuit/signal channel no.,customization available based on the stand Features 4 circuits,maximum current can reach 500A per channel; Through hole hollow axis installation,can be installed on the rotation axis. Hole size 25.4mm,OD 158mm,hole size customization available; Other specifications can be customized quickly based on standard model; Has the advantages of small contact resistance, low heat and long - term stable operation; Aluminium alloy housing,integrated structure design,easy installation
