Absolute pressure transducer B2V series
ceramicpiezoresistiveratiometric

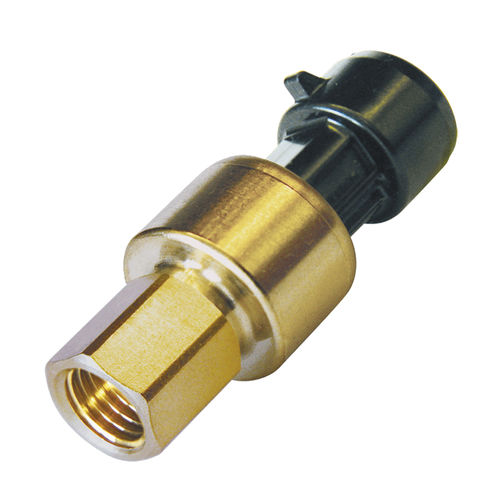

Absolute pressure transducer - B2V series - SENSAGGIO SRL - ceramic / piezoresistive / ratiometric
Absolute pressure transducer - B2V series - SENSAGGIO SRL - ceramic / piezoresistive / ratiometric
Absolute pressure transducer - B2V series - SENSAGGIO SRL - ceramic / piezoresistive / ratiometric - image - 2
Absolute pressure transducer - B2V series - SENSAGGIO SRL - ceramic / piezoresistive / ratiometric - image - 3
Add to favorites
Compare this product


Characteristics

Pressure type
absolute
Technology
ceramic, piezoresistive
Output
ratiometric
Fluid
for gas, for liquids
Material
brass
Protection level
IP67, EMC
Applications
for water treatment, for the aeronautical industry
Other characteristics
fast response time, with temperature sensor
Pressure range

Max.: 667.17 psi

Min.: 0 psi

Description

AVAILABLE pressure ranges: 075 – 150 – 200 – 215 – 300 – 515 – 667 (psi)FEATURES PRESSURE RANGE: 0 ÷ 667,17 [psi] 0 ÷ 46,0 [bar] 0 ÷ 4598,8 [KPa] TYPE: Absolute MEDIA: Air – Gases – Liquids FLEXIBILITY: Customizable with different materials, connectors and transfer function. BENEFITSPERFORMANCE: Resistant to extreme temperatures, excellent hysteresis, high accuracy, fast response time and excellent surge resistance. COMPATIBILITY: Suitable for refrigerant gases (portable applications), also for new gas HFO-1234ze, R1234yf, R407C, and related oils. RESISTANCE: Suitable for critical applications, with aggressive fluids. COMPLIANCE: Compliant with Rohs and Reach Regulation.
