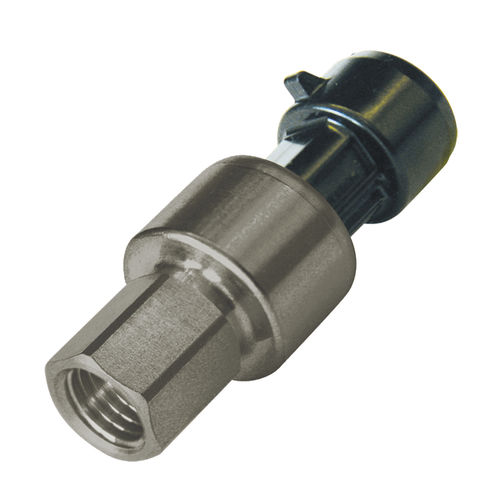

Absolute pressure transducer A2V seriesthin-filmpiezoresistiveratiometric
Add to favorites
Compare this product
Characteristics
- Pressure type
- absolute
- Technology
- thin-film, piezoresistive
- Output
- ratiometric
- Fluid
- for gas, for liquids
- Other characteristics
- precision, OEM, high-temperature, fast response time, with aluminum housing
- Pressure range
Min.: 0 psi
Max.: 667.17 psi
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 135 °C
(275 °F)
Description
AVAILABLE MODELS075 – 150 – 200 – 215 – 300 – 500 – 700 (psi)FEATURESPRESSURE RANGE: 0 ÷ 667,17 [psi] 0 ÷ 46,0 [bar] 0 ÷ 4598,8 [KPa]TYPE: AbsoluteMEDIA: Air – Gases – LiquidsFLEXIBILITY: Customizable with different materials, connectors and transfer function.BENEFITSPERFORMANCE: Resistant to extreme temperatures, excellent hysteresis, high accuracy, fast response time and excellent surge resistance.COMPATIBILITY: Suitable for HVAC-R refrigerant gases, also for new gas HFO-1234ze, R1234yf, R407C, and related oils.RESISTANCE: Suitable for critical applications, with aggressive fluids.COMPLIANCE: Compliant with Rohs and Reach Regulation.
