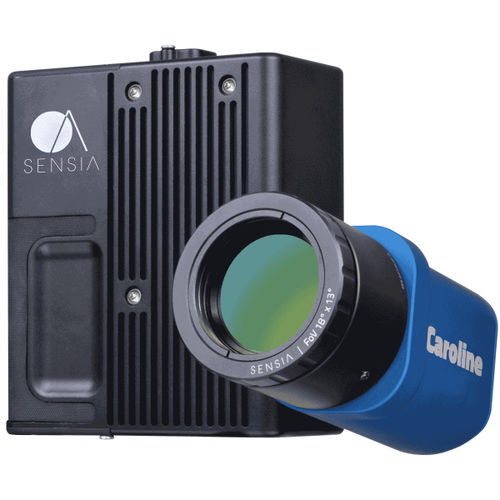

Gas leak detection camera Caroline Y

industrialdigitalfor VOC gas leak detection

Caroline Y is SENSIA’s latest model of Optical Gas Imaging (OGI) for the detection of fugitive emissions of methane (CH4), SO2 and VOC’s leaks. It integrates a spectrally optimized high-resolution uncooled detector that detects the 90% of diffused gas emissions caused by leaks. Featuring an integrated touch screen display, Caroline cameras run the software application RedLook embedded increasing the functionality and simplicity of the device. Base Specifications FPA : Uncooled 640 x 480 px Pixel Pitch : 17 μm NETD : <22mK @ +30ºC Lenses : 20 mm | 35 mm Lens Field of View : 31ºx23º | 18ºx13º Display : TFT LCD panel 5″ HD Accuracy : ± 1ºC (from -10ºC to 60ºC ) Memory Storage : SD card up to 256 GB Autonomy : 3 x 4 hr Weight : 2.1 kg Max. Dimensions : 187 x 165 x 68 mm Operating Temp. Range : -10ºC to +50ºC Storage : -40ºC to +71ºC Certifications : EMC (EN 61326:2013) IP 65 (EN 60529:2018) ATEX Zone II (EN 60079:2013) II 3G Ex nR IIC T6
