VOC gas leak detection camera Mileva 33-320 ON-BOARD

industrialfor UAVsdigital

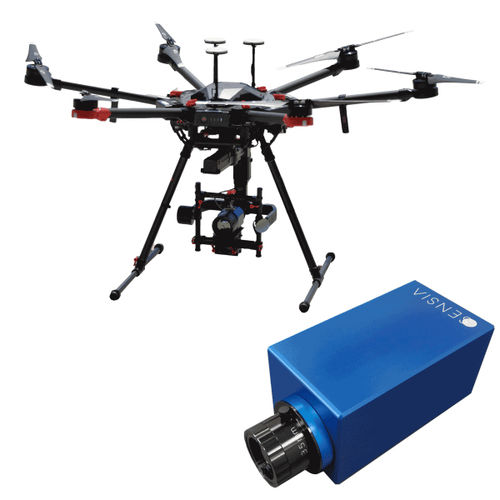

Mileva 33-320 ON-BOARD is SENSIA’s latest model of Optical Gas Imaging (OGI) for unmanned aircraft surveys. This thermal camera based on a cooled T2SL detector, is able to find the fugitive emissions of VOC’s and hydrocarbon gases (HxCx) down to 0.35 g/h of CH4. The system integrates an on-board computer with Redlook Software which runs the gas imaging processing algorithms for gas detection. Base Specifications Field of view : 22ºx17º Detector : Cooled 320 x 256 px Spectral region : 3.2 to 3.3 μm Pixel Pitch : 30 μm Raw video data : 16 bits NETD : <10mK @ +50ºC MDLR (for CH4)* : 0,35 g/h Electrical : <25W (Cooldown) / <10 W (nominal) Voltage : 12 – 18 V Data : USB Material : 6068 aluminum Max. Dimensions : 55 x 80 x 250 mm Weight : 1,4 kg Mechanical interface : 1/4” UNC Operating Temperature Range : -10ºC to +50ºC Storage Temperature Range : -40ºC to +71ºC Maximum relative humidity : 95% Certifications : EMC (EN 61326:2013) IP 65 (EN 60529:2018) EPA OOOOa COMPLIANCE
