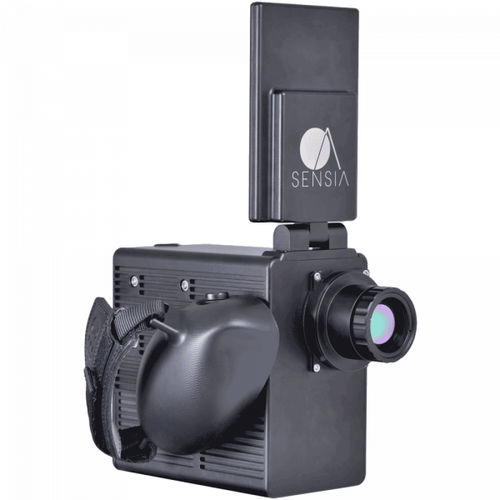

Industrial camera Mileva 45

digitalfor gas leak detectionIR

Mileva 45 is the latest model of Optical Gas Imaging for micro-leaks detection of carbon dioxide. A spectrally optimized cooled detector of 640 x 512 pixels improves the minimum detectable leak rate. Mileva 45 is compatible with RedLook Handheld increasing the functionality and simplicity of the device. SENSIA’s Sniffer and Mileva 45 merge both methods, Smart LDAR and Method 21, in a smart and digital way. Base Specifications FPA : Cooled 640 x 512 px Pixel Pitch : 15 μm NETD : <15mK @ +50ºC Lenses : N: 12ºx9º | M: 18ºx13º Accuracy : ± 1ºC (from 0ºC to 70ºC Scene Temp.) Storage : SD card up to 256 GB Weight : 3,4 kg Autonomy : 3 x 3 hr Display : TFT LCD panel 5″ HD Max. Dimensions : 251 x 262 x 151 mm Operation Temperature : -10ºC to +50ºC Minimum Detectable Leak Rate (CO2) : 3,24 g/h* Certifications : EMC (EN 61326:2013) IP 65 (EN 60529:2018) ATEX Zone II (EN 60079:2013) EPA OOOOa COMPLIANCE
