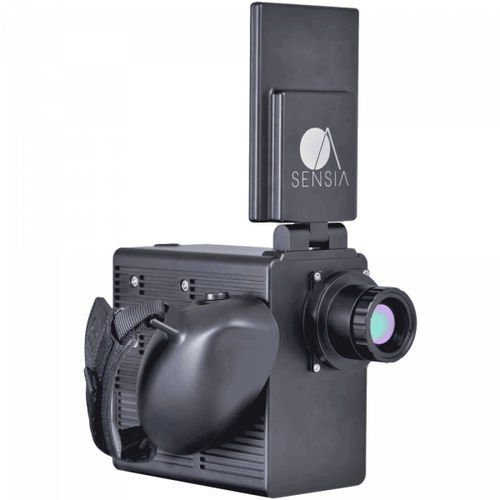

Industrial camera Mileva 47digitalfor gas leak detectionIR
Add to favorites
Compare this product
Characteristics
- Applications
- industrial
- Technology
- digital
- Function
- for gas leak detection
- Spectrum
- IR
- Sensor
- FPA
- Other characteristics
- with LCD screen, cooled, handheld
Description
Mileva 47 is the latest model of Optical Gas Imaging for micro-leaks detection of carbon monoxide (CO).
Spectrally optimized cooled detector of 320 x 265 pixels improves the minimum detectable leak rate. Mileva 47 integrates Redlook Handheld increasing the functionality and simplicity of the device.
Base Specifications
FPA : Cooled 320 x 256 px
Pixel Pitch : 30 μm
NETD : <15mK @ +50ºC
Lenses : N: 12ºx9º | M: 18ºx13º
Accuracy : ± 1ºC (from 0ºC to 70ºC Scene Temp.)
Storage : SD card up to 256 GB
Weight : 3,4 kg
Autonomy : 3 x 3 hr
Display : TFT LCD panel 5″ HD
Max. Dimensions : 251 x 262 x 151 mm
Operation Temperature : -10ºC to +50ºC
Certifications : EMC (EN 61326:2013)
IP 65 (EN 60529:2018)
ATEX Zone II (EN 60079:2013)
EPA OOOOa Compliance
