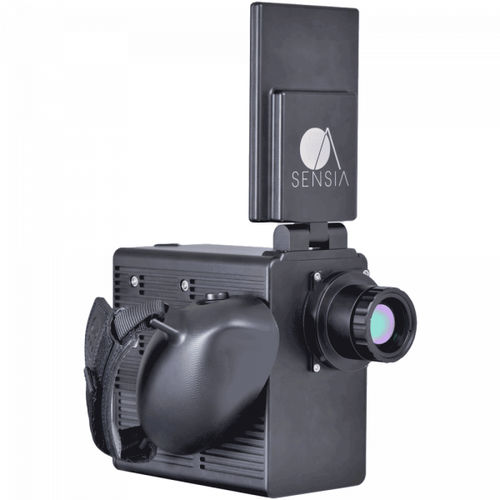

Industrial camera Mileva 33

digitalfor gas leak detectionfor VOC gas leak detection

Mileva 33 is SENSIA’s latest model of Optical Gas Imaging (OGI) for the detection of fugitive emissions of hydrocarbon gases (HxCx). It integrates a spectrally optimized high-resolution cooled detector that increases the detection sensitivity for leaks down to 0.4 g/h of CH4. Mileva 33 by PASSIVE IR absorption can detect all the hydrocarbons and VOCS (including CH4) on the 3.2 – 3.4 μm wavelength. The detection distance is higher than 100m and VOC leak images and videos can be recorded and played inmediately. Base Specifications FPA : Cooled 640 x 512 px Pixel Pitch : 15 μm NETD : <15mK @ +50ºC Lenses : N: 12ºx9º | M: 18ºx13º Accuracy : ± 1ºC (from 0ºC to 70ºC Scene Temp.) Storage : SD card up to 256 GB Weight : 3,4 kg Autonomy : 3 x 3 hr Display : TFT LCD panel 5″ HD Max. Dimensions : 251 x 262 x 151 mm Operation Temperature : -10ºC to +50ºC Minimum Detectable Leak Rate (CH4) : 0,4 g/h* Certifications : EMC (EN 61326:2013) IP 65 (EN 60529:2018) ATEX Zone II (EN 60079:2013) EPA OOOOa COMPLIANCE
