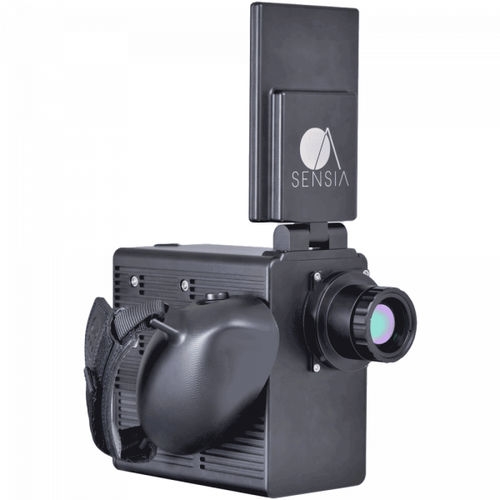

Industrial camera Calcifir RX

for furnacesfor boilerdigital

Calcifir RX Ex technology is based on an hand held infrared camera prepared to accurately measure temperatures through flames. This cameras is ideal for monitoring all kinds of heaters, furnaces, boilers, and many other utility industries. With Redlook Handheld integrated, Calcifir RX becomes key a tool for performance optimisation and efficiency in the industry. Base Specifications FPA : Cooled 320 x 256 px Pixel Pitch : 30 μm NETD : <15mK @ +30ºC Lenses : N: 12ºx9º | M: 18ºx13º Accuracy : ± 1ºC (from 0ºC to 100ºC ) ± 2ºC or 2% (from 100ºC to 1500ºC ) Storage : SD card up to 256 GB Weight : 3,4 kg Autonomy : 3 x 3 hr Display : TFT LCD panel 5″ HD Max. Dimensions : 251 x 262 x 151 mm Operation Temp. Range : -10ºC to +50ºC Certifications : EMC (EN 61326:2013) IP 65 (EN 60529:2018) ATEX Zone II (EN 60079:2013)
