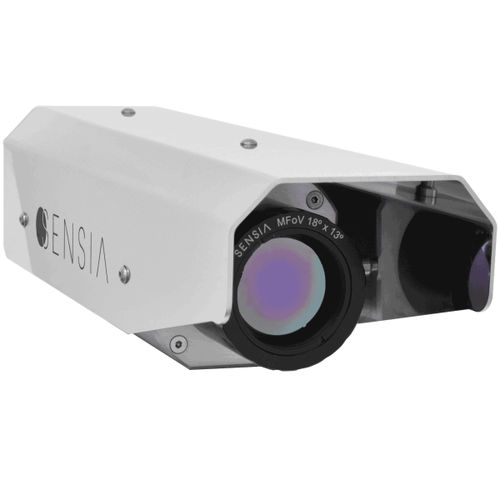

Industrial camera Calcifir F

fire detectiondigitalmonitoring

Calcifir F is a complete continuous monitoring system based on image processing and infrared thermography. This solution is a cutting-edge technology for HSE (Health, Safety & Environment). It automatically detects, locates and visualizes a fire point, activating the security protocols. This system is ultra sensitive, capable of providing 99% fire detection @ 3×3 pixels. It combines the latest technology in non-refrigerated infrared detectors with SENSIA detection algorithms. Base specifications FPA : 384 x 288 | 320 x 260 px Pixel Pitch : 17 μm NETD : <50mK @ +30ºC Optical : Under demand From 5 mm to 150 mm Digital Zoom : x12 Data : GigE 9 Hz / 25 Hz Power : <3 watts; PoE (power over ethernet) 9v-48v Weight : 3 kg Size : 97x110x330 mm Operating Temp. Range : -10ºC to +50ºC Accuracy : ± 2ºC or 2% WIG (from 100ºC to 600ºC) Other range by demand Storage : -40ºC to +71ºC Ingress Protection : EN 60529 (IP66/IP67) Certifications : EMC (EN 61326:2013)
