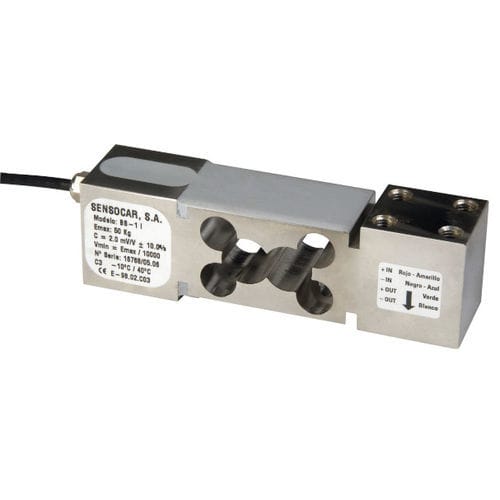

Bending beam load cell BS-1 seriessingle-pointstrain gaugeweighing
Add to favorites
Compare this product
Characteristics
- Type
- bending beam
- Form
- single-point
- Technology
- strain gauge
- Applications
- weighing, for bagging machines, for dosing, for parts counting
- Other characteristics
- OIML, stainless steel, IP67, IP68, hermetic
- Rated load
Min.: 50 kg
(110.23 lb)Max.: 500 kg
(1,102.31 lb)
Description
Applications
Animal Weighing
Check weighers
Person weight (medical) scales
Single point platform
Multihead weigher
Dynamic weighers
Divisions Up to 4000 divisions OIML-R60
Material Fully stainless steel
IP Rating IP-67 / IP-68
Accuracy Class C3-C4
Rated Output (RO) 2mV/V
Output ratio error (RO%) ± 10%
Vmin Emax/10000
Excitation voltage 5...15V
Input resistance 390 ± 3Ω
Output resistance 350 ± 3Ω
Zero balance ± 1Ω
Compensated temperature range -10...+40℃
Operating temperature range -35...+70℃
Storage temperature range -40...+80℃
Safe load limit 150% Emax
Insulation resistance >5000M Ω
Cable length 5m
