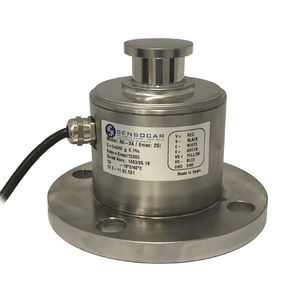

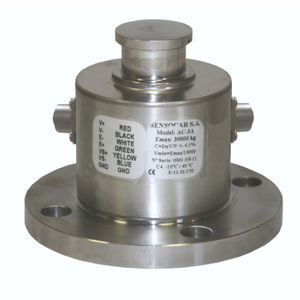

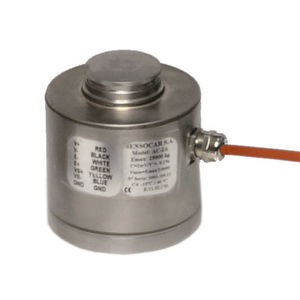

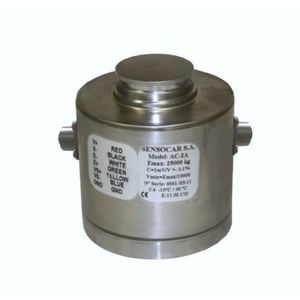

Compression load cell AC-2Acanisterstrain gauge2 mV/V
Add to favorites
Compare this product
Characteristics
- Type
- compression
- Form
- canister
- Technology
- strain gauge
- Output signal
- 2 mV/V
- Applications
- for hopper, for silos, for mixers
- Other characteristics
- OIML, stainless steel, IP68, hermetic, IP69K
- Rated load
Max.: 200 t
(220.46 us ton)Min.: 15 t
(16.53 us ton)- Length
88.9 mm, 114.4 mm
(3.5 in, 4.504 in)- Height
99.4 mm, 123 mm
(3.91 in, 4.84 in)
Description
Mixers / Hoppers / Silos
High IP level (IP68-IP69K)
Divisions
Up to 4000 divisions OIML-R60
Material
Fully stainless steel
IP Rating
IP-68
Accuracy Class
C3-C4
Output ratio error (RO%)
± 0,1%
Vmin
Emax/10000
Excitation voltage
5...15V
Input resistance
800 ± 5Ω
Output resistance
700 ± 3Ω
Zero balance
± 1%
Compensated temperature range
-10...+40℃
Operating temperature range
-35...+70℃
Storage temperature range
-40...+80℃
Safe load limit
150% Emax
Insulation resistance
>5000M Ω
Cable length
15m
