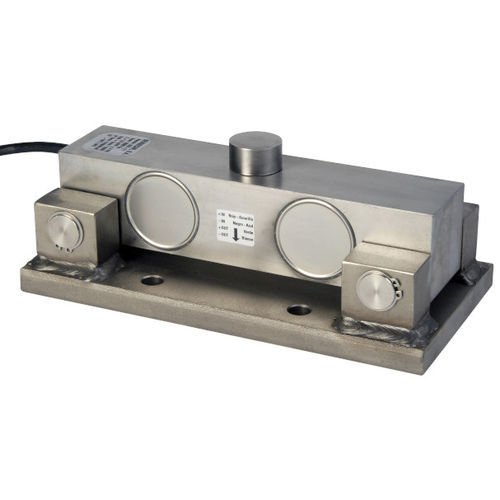

Double-ended shear beam load cell DCO-3beam typestrain gaugedigital
Add to favorites
Compare this product
Characteristics
- Type
- double-ended shear beam
- Form
- beam type
- Technology
- strain gauge
- Output signal
- analog, digital
- Applications
- weighing, for hopper, for silos, for mixers, for truck scale
- Other characteristics
- OIML, stainless steel, IP67, explosion-proof
- Rated load
Min.: 5,000 kg
(11,023.11 lb)Max.: 25,000 kg
(55,115.57 lb)10 kg, 15 kg, 20 kg, 25 kg, 5,000 kg
(5.51 lb, 11.02 lb, 16.53 lb, 22.05 lb, 27.56 lb)
Description
High resolution (C5-C6)
ATEX areas
4 load cells platform
Divisions Up to 6000 divisions OIML-R60
Material Fully stainless steel
IP Rating IP-67
Accuracy Class C3-C4-C5-C6
Rated Output (RO) 2mV/V
Output ratio error (RO%) ± 0,1%
Vmin Emax/10000
Excitation voltage 5...15V
Input resistance 700 ± 5Ω
Output resistance 700 ± 3Ω
Zero balance ± 1Ω
Compensated temperature range -10...+40℃
Operating temperature range -35...+70℃
Storage temperature range -40...+80℃
Safe load limit 150% Emax
Insulation resistance >5000M Ω
Cable length 15m
